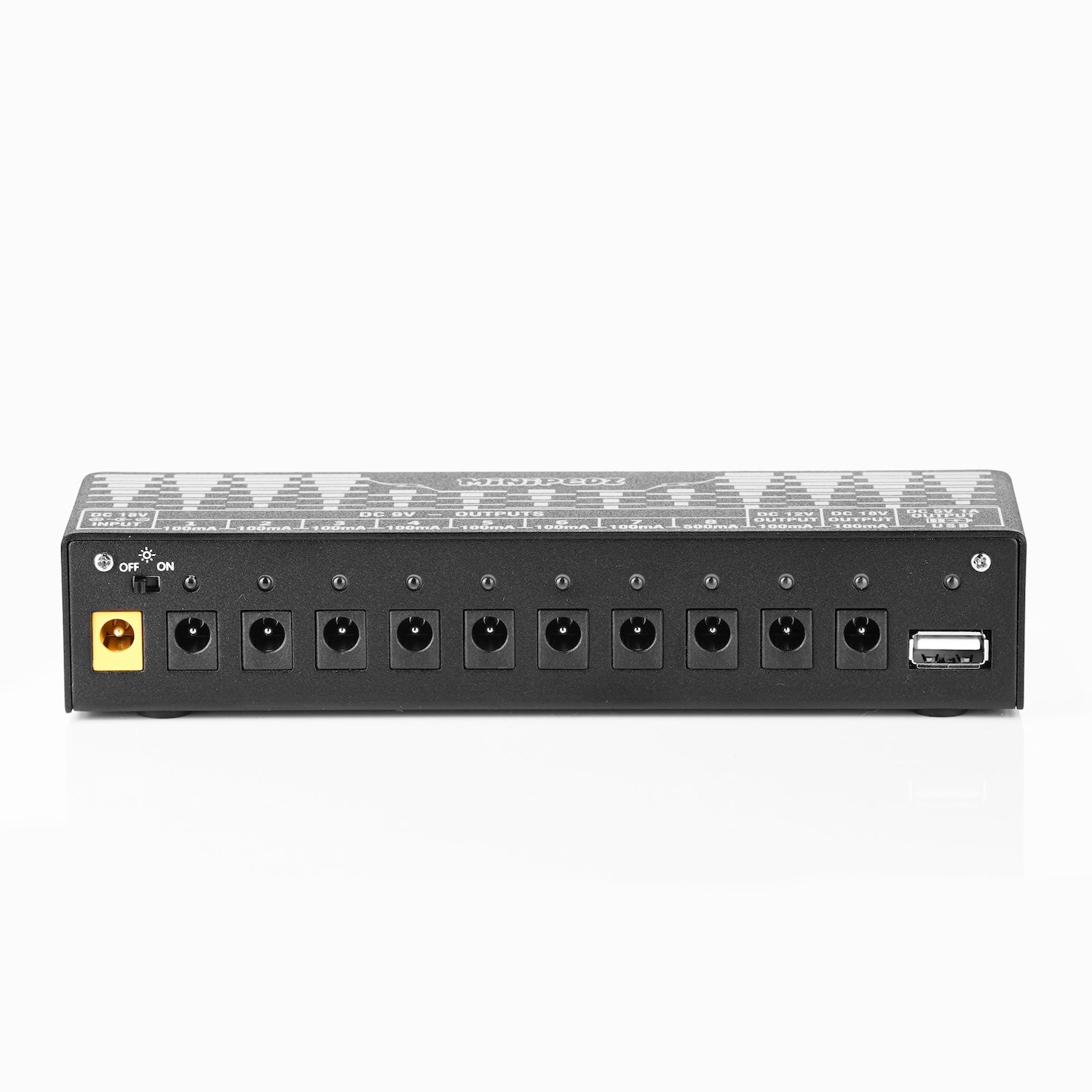

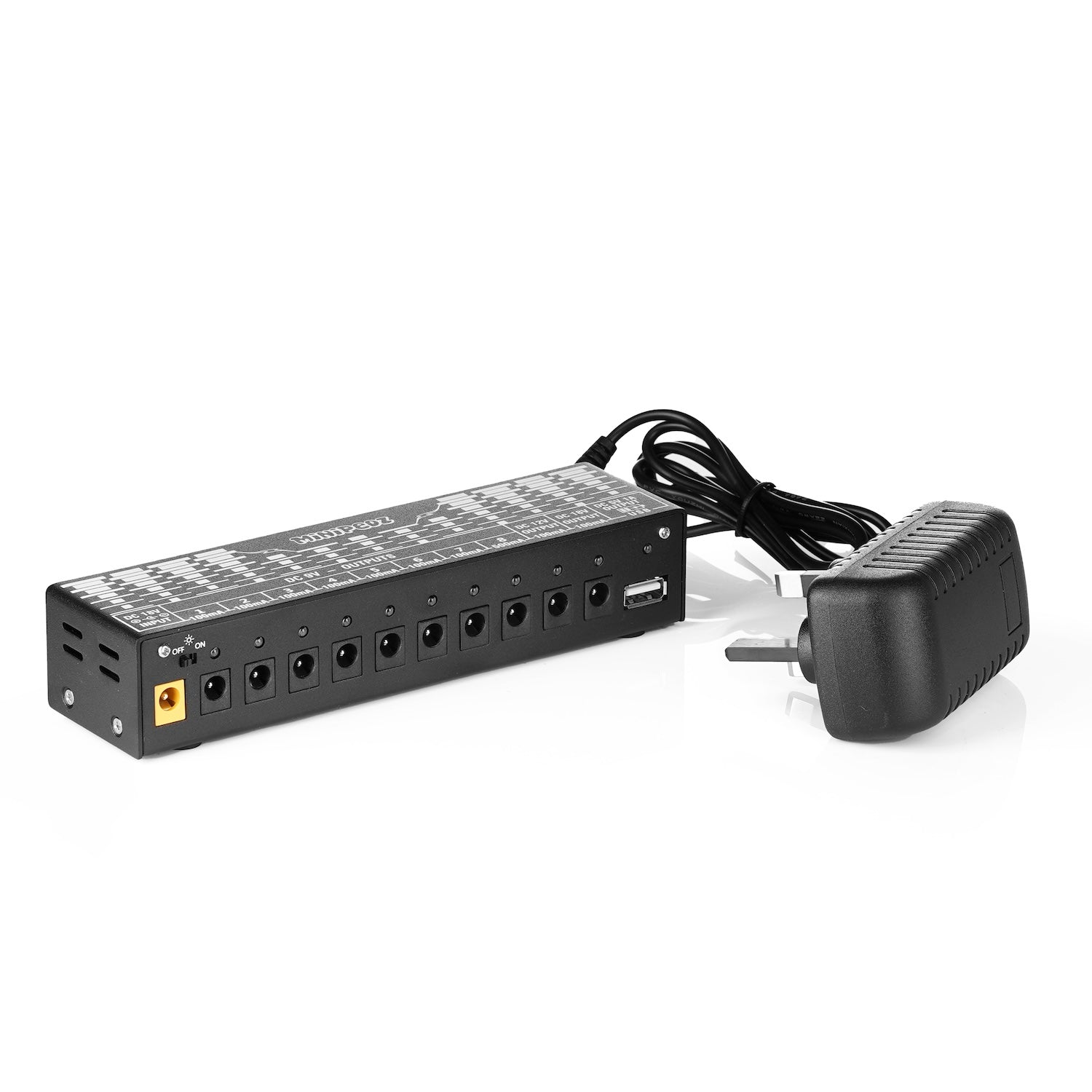

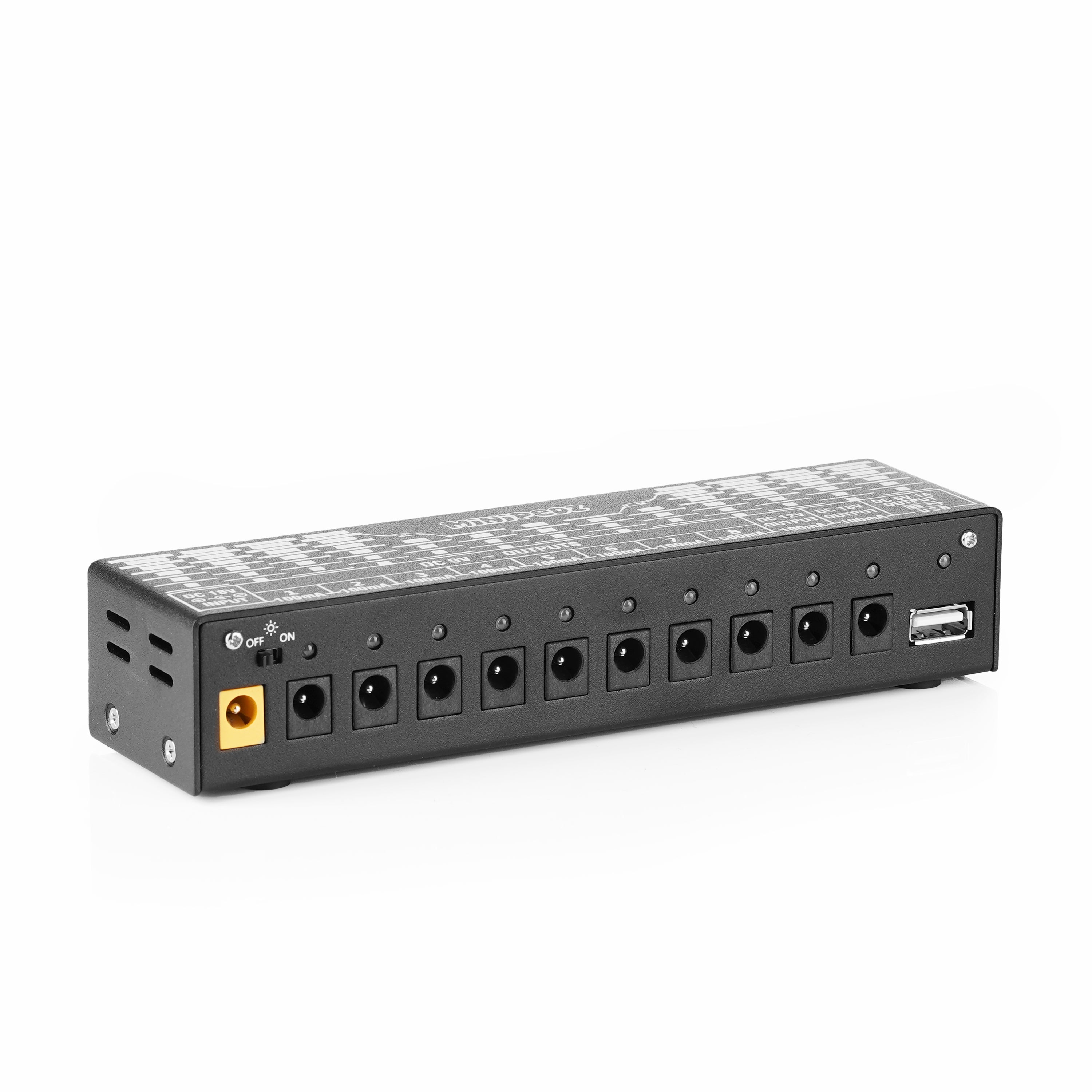

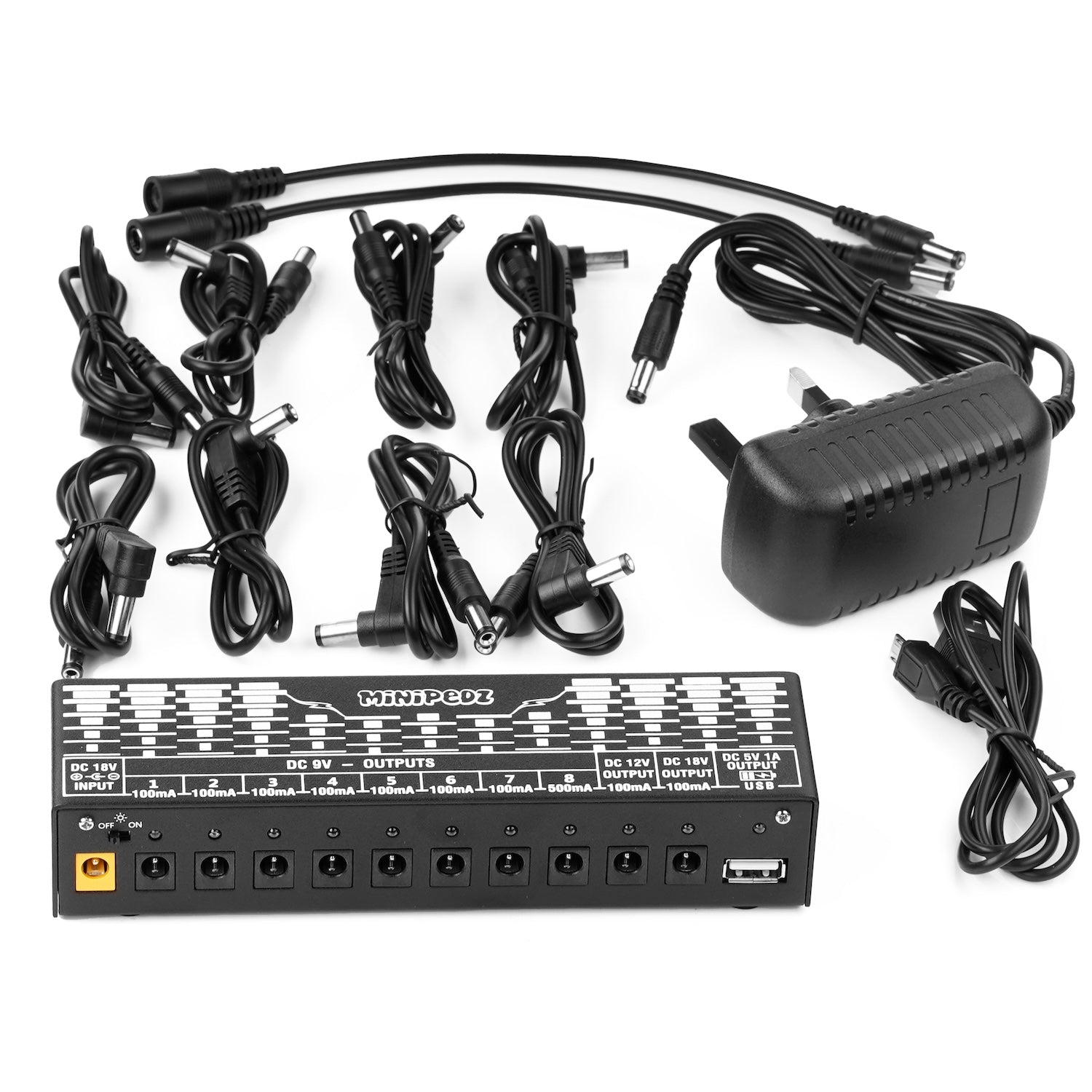

The MiniPedz Multi Power Supply is a premium quality multi power supply for powering eight 9V effects pedals, plus three additional outputs for 1 x 12V, 1 x 18V, and 1 x USB output at 5V.

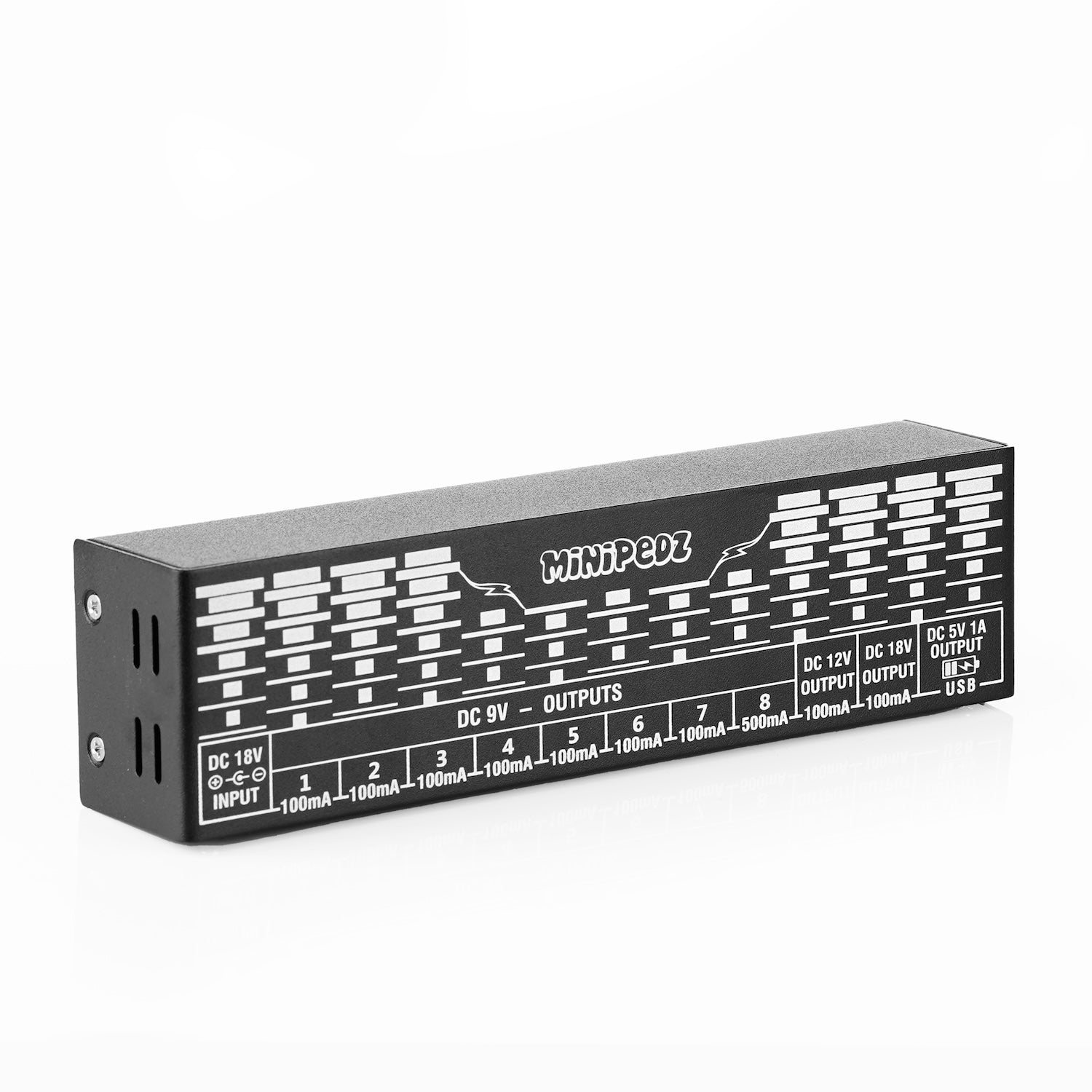

From left to right, #1-4 outputs provide DC9V 100mA, #5-7 outputs provide DC9V 300mA; #8 output provides DC 9V 500mA; #9 output provides DC 12V 300mA; #10 output provides DC 18V, and #11 output provides USB charging 5V 1A.

Specifications

• Power Input: 18v DC Adapter
• Outputs: 8 x DC 9v Outputs, 1 x DC 12v, 1 x DC 18v, and 1 x USB 5v
• Current Draw: 100mA
• Dimensions: 172mm(L) x 45mm(W) x 33mm(H)
• Weight: 335g
